CXA2540-0000-000N0UU440F
Cree
- Lifecycle status Active
- RoHS RoHS Compliant

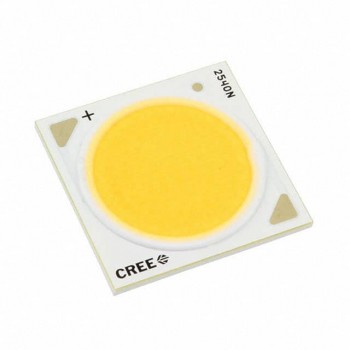

- DescriptionLED COB CXA2540 NEUTRAL WHITE SQ
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA2540-0000-000N0UU440F Datasheet
-
ECAD Model
- Share
In Stock: 172
Can ship immediately
Pricing:
- 1$14.059
- 100$14.059
Quote It
Technical Details
- Series:XLamp® CXA2540
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Neutral
- CCT (K):4000K 4-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:4093lm (3955lm ~ 4230lm)
- Current - Test:1.1A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):37V
- Lumens/Watt @ Current - Test:101 lm/W
- Current - Max:2.1A
- CRI (Color Rendering Index):90
- Viewing Angle:115°
- Features:-
- Size / Dimension:23.85mm L x 23.85mm W
- Height:1.70mm
- Light Emitting Surface (LES):19.00mm Dia
- Lens Type:Flat
