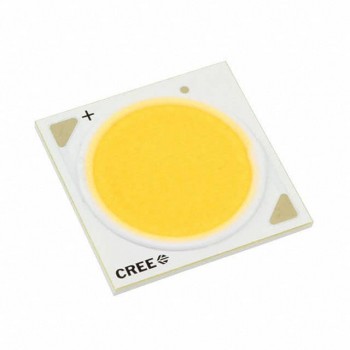

CXA3050-0000-000N0UW250F
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB XLAMP CXA3050 5000K SQ
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA3050-0000-000N0UW250F Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$16.065
- 100$16.065
Quote It
Technical Details
- Series:XLamp® CXA3050
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Cool
- CCT (K):5000K 4-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:5043lm (4860lm ~ 5225lm)
- Current - Test:1.4A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):37V
- Lumens/Watt @ Current - Test:97 lm/W
- Current - Max:2.5A
- CRI (Color Rendering Index):90
- Viewing Angle:115°
- Features:-
- Size / Dimension:27.35mm L x 27.35mm W
- Height:1.70mm
- Light Emitting Surface (LES):23.00mm Dia
- Lens Type:Flat
