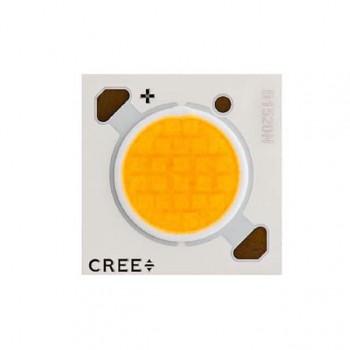

CXB1520-0000-000N0UP230H
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB XLAMP CXB1520 3000K SQ
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXB1520-0000-000N0UP230H Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$16.524
- 100$16.524
Quote It
Technical Details
- Series:Xlamp® CXB1520
- Package:Bulk
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):3000K 2-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:1898lm (1830lm ~ 1965lm)
- Current - Test:500mA
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):33V
- Lumens/Watt @ Current - Test:115 lm/W
- Current - Max:1.4A
- CRI (Color Rendering Index):90
- Viewing Angle:115°
- Features:-
- Size / Dimension:15.85mm L x 15.85mm W
- Height:1.55mm
- Light Emitting Surface (LES):9.00mm Dia
- Lens Type:Flat
