CXA3050-0000-000N0UW440G
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB CXA3050 4000K WHT SMD
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA3050-0000-000N0UW440G Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
- 1$19.108
- 100$19.108
Quote It
Technical Details
- Series:XLamp® CXA3050
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Neutral
- CCT (K):4000K 3-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:5408lm (5225lm ~ 5590lm)
- Current - Test:1.4A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):36V
- Lumens/Watt @ Current - Test:107 lm/W
- Current - Max:2.5A
- CRI (Color Rendering Index):90
- Viewing Angle:115°
- Features:-
- Size / Dimension:27.35mm L x 27.35mm W
- Height:1.70mm
- Light Emitting Surface (LES):23.00mm Dia
- Lens Type:Flat
Related Products

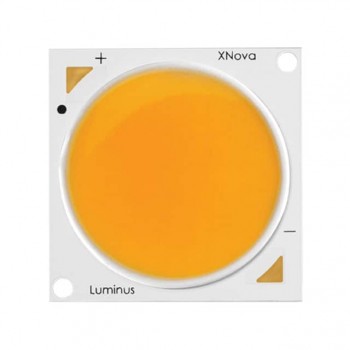

LED COB CHM22 WARM WHITE SQUARE
