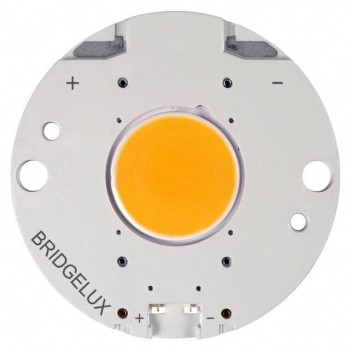

BXRC-50C4000-F-04
Bridgelux, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB VERO18 COOL WHITE ROUND
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet BXRC-50C4000-F-04 Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Vero® 18 Array
- Package:Tray
- Part Status:Obsolete
- Type:Chip On Board (COB)
- Color:White, Cool
- CCT (K):5000K 4-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Round
- Luminous Flux @ Current/Temperature:4400lm (Typ)
- Current - Test:1.05A
- Temperature - Test:25°C
- Voltage - Forward (Vf) (Typ):29.5V
- Lumens/Watt @ Current - Test:142 lm/W
- Current - Max:2.1A
- CRI (Color Rendering Index):70
- Viewing Angle:120°
- Features:-
- Size / Dimension:36.20mm Dia
- Height:1.90mm
- Light Emitting Surface (LES):18.40mm Dia
- Lens Type:Flat
