0272.500H
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFUSE BOARD MNT 500MA 125VAC/VDC
- CategoryFuses
- Datasheet 0272.500H Datasheet
-
ECAD Model
- Share
In Stock: 262
Can ship immediately
Pricing:
- 1$8.8
- 100$5.03954
Quote It
Technical Details
- Series:MICRO™ 272
- Package:Bulk
- Part Status:Active
- Mounting Type:Through Hole
- Fuse Type:Board Mount (Cartridge Style Excluded)
- Current Rating (Amps):500 mA
- Voltage Rating - AC:125 V
- Voltage Rating - DC:125 V
- Response Time:Fast Blow
- Package / Case:Radial, Can, Vertical
- Breaking Capacity @ Rated Voltage:10kA
- Melting I²t:0.0716
- Approval Agency:CSA, QPL, UL
- Operating Temperature:-55°C ~ 125°C
- Color:-
- Size / Dimension:0.235" Dia x 0.287" H (5.97mm x 7.30mm)
Related Products
FUSE CERAMIC 6A 1KVAC 1KVDC 5AG
- 1: $9.33000
FUSE CERAMIC 3A 1KVAC 1KVDC 5AG
- 1: $9.33000
FUSE CERAMIC 4A 1KVAC 1KVDC 5AG
- 1: $9.33000
FUSE CERAMIC 15A 1KVAC 1KVDC 5AG
- 1: $9.33000
FUSE CERAMIC 2A 1KVAC 1KVDC 5AG
- 1: $9.33000
FUSE CERAMIC 1A 1KVAC 1KVDC 5AG
- 1: $9.33000
FUSE - MEGA 70V (SF51) 2-M8 HOLE
- 1: $10.01000

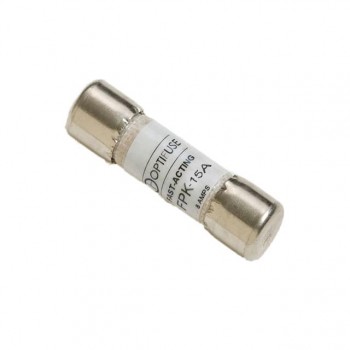

FUSE CART 15A 600VAC 600VDC 5AG
