- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCH SNAP ACTION DPDT 10A 120V
- CategorySnap Action, Limit Switches
- Datasheet LSD7L Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$173.28
- 10$168.03072
- 25$157.52881
- 50$149.65237
Quote It
Technical Details
- Series:HDLS
- Package:Bulk
- Part Status:Active
- Circuit:DPDT (DB/DM)
- Switch Function:On-Mom
- Current Rating (Amps):10A (AC), 800mA (DC)
- Voltage Rating - AC:120 V
- Voltage Rating - DC:115 V
- Actuator Type:Roller Plunger
- Mounting Type:Chassis Mount
- Termination Style:Screw Terminal
- Ingress Protection:-
- Features:-
- Operating Force:1814gf
- Release Force:-
- Pretravel:0.071" (1.8mm)
- Differential Travel:0.020" (0.5mm)
- Overtravel:0.190" (4.8mm)
- Operating Temperature:-12°C ~ 93°C
Related Products

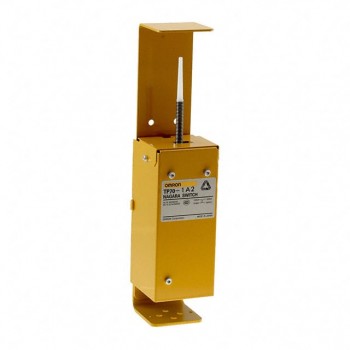

SWITCH FLEX ROD DPST FRONT MNT
