M2024S3S4W05

NKK Switches
In Stock: 115

Can ship immediately

Pricing:
  • 1$6.1485
  • 100$6.1485

Quote It

Technical Details

  • Series:M
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:SP3T
  • Switch Function:On-On-On
  • Current Rating (Amps):6A (AC), 3A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Standard Round



  • Actuator Length:6.50mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Wire Wrap
  • Panel Cutout Dimensions:Circular - 6.50mm Dia
  • Bushing Thread:M6 x 0.75
  • Ingress Protection:-
  • Features:Jumper needed to achieve triple throw
  • Operating Temperature:-30°C ~ 85°C

Related Products


A24J2H

SUBMINIATURE TOGGLE/PC

  • 1: $6.14850
  • 100: $6.14850

M2113TCW03

SWITCH TOGGLE SPDT 6A 125V

M2113TCW03 Datasheet
  • 1: $6.15090
  • 1000: $5.71155

M2113LFW03

MINIATURE TOGGLE/ILLUMINATED/SOL

  • 1: $6.15090
  • 1000: $5.71155

M2023E4A2W13

SWITCH TOGGLE DPDT 6A 125V

M2023E4A2W13 Datasheet
  • 1: $6.15600
  • 100: $6.15600

M2029SS1W06

SWITCH TOGGLE DPDT 6A 125V

M2029SS1W06 Datasheet
  • 1: $6.15600
  • 100: $6.15600

M2024E2S2W40

SWITCH TOGGLE SP3T 6A 125V

M2024E2S2W40 Datasheet
  • 1: $6.16504
  • 1000: $5.72468

M2028SS1W30

SWITCH TOGGLE DPDT 6A 125V

M2028SS1W30 Datasheet
  • 1: $6.16504
  • 1000: $5.72468

M2028S3A2G45

SWITCH TOGGLE DPDT 0.4VA 28V

M2028S3A2G45 Datasheet
  • 1: $6.16504
  • 1000: $5.72468

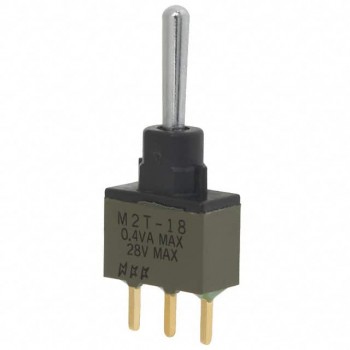

M2T18SA5G03
