M2046SD3W01
NKK Switches- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCH TOGGLE DP3T 6A 125V
- CategoryToggle Switches
- Datasheet M2046SD3W01 Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$12.3702
- 100$12.3702
Quote It
Technical Details
- Series:M
- Package:Bulk
- Part Status:Active
- Mounting Type:Panel Mount
- Circuit:DP3T
- Switch Function:Mom-On-Mom
- Current Rating (Amps):6A (AC), 3A (DC)
- Voltage Rating - AC:125 V
- Voltage Rating - DC:30 V
- Actuator Type:Standard Round
- Actuator Length:10.50mm
- Illumination:Non-Illuminated
- Illumination Type, Color:-
- Illumination Voltage (Nominal):-
- Termination Style:Solder Lug
- Panel Cutout Dimensions:Circular - 6.50mm Dia
- Bushing Thread:1/4-40
- Ingress Protection:IP67 - Dust Tight, Waterproof
- Features:Jumper needed to achieve triple throw
- Operating Temperature:-30°C ~ 85°C
Related Products

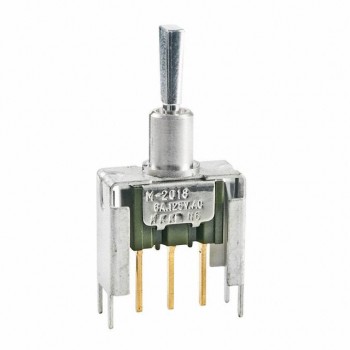

MINIATURE TOGGLE/ILLUMINATED/SOL
- 1: $12.50000
DPDT ON-NONE-ON, PCB
- 1: $12.54000

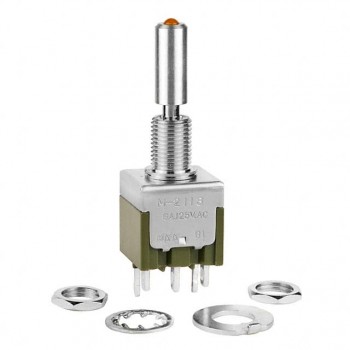

MINIATURE TOGGLE/MULTI-FUNCTION
