M2044S2A1W01
NKK Switches
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMINIATURE TOGGLE/MULTI-FUNCTION
- CategoryToggle Switches
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$15.09
Quote It
Technical Details
- Series:M
- Package:Bulk
- Part Status:Active
- Mounting Type:Panel Mount
- Circuit:DP3T
- Switch Function:On-On-On
- Current Rating (Amps):6A (AC), 4A (DC)
- Voltage Rating - AC:125 V
- Voltage Rating - DC:30 V
- Actuator Type:Standard Round
- Actuator Length:6.86mm
- Illumination:Non-Illuminated
- Illumination Type, Color:-
- Illumination Voltage (Nominal):-
- Termination Style:Solder Lug
- Panel Cutout Dimensions:Circular - 6.50mm Dia
- Bushing Thread:1/4-40
- Ingress Protection:-
- Features:Jumper needed to achieve triple throw
- Operating Temperature:-30°C ~ 85°C
Related Products

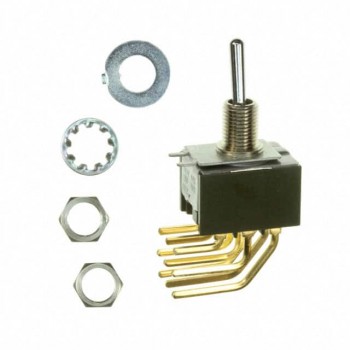

DPDT ON-NONE-ON, PCB
