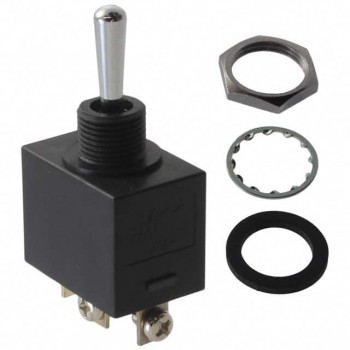

M2049B2B1W01
NKK Switches
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCH TOGGLE 4PDT 6A 125V
- CategoryToggle Switches
- Datasheet M2049B2B1W01 Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$15.87
Quote It
Technical Details
- Series:M
- Package:Bulk
- Part Status:Active
- Mounting Type:Panel Mount
- Circuit:4PDT
- Switch Function:On-Off-Mom
- Current Rating (Amps):6A (AC), 3A (DC)
- Voltage Rating - AC:125 V
- Voltage Rating - DC:30 V
- Actuator Type:Standard Round
- Actuator Length:17.50mm
- Illumination:Non-Illuminated
- Illumination Type, Color:-
- Illumination Voltage (Nominal):-
- Termination Style:Solder Lug
- Panel Cutout Dimensions:Circular - 12.50mm Dia
- Bushing Thread:M12 x 1
- Ingress Protection:-
- Features:Epoxy Sealed Terminals
- Operating Temperature:-30°C ~ 85°C
