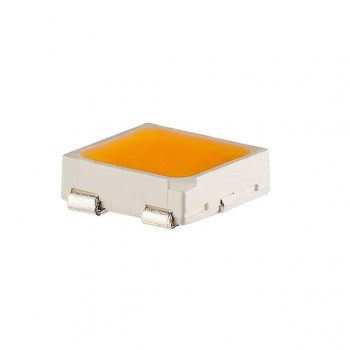

MLEAWT-A1-R250-0004F4

Technical Details

• Series:XLamp® ML-E
• Package:Tape & Reel (TR)
• Part Status:Active
• Color:White, Neutral
• CCT (K):4750K (4500K ~ 5000K)
• Flux @ 85°C, Current - Test:53lm
• Flux @ 25°C, Current - Test:59lm (57lm ~ 62lm)
• Current - Test:150mA
• Voltage - Forward (Vf) (Typ):3.2V

• Lumens/Watt @ Current - Test:123 lm/W
• CRI (Color Rendering Index):80
• Current - Max:500mA
• Viewing Angle:120°
• Mounting Type:Surface Mount
• Package / Case:4-SMD, J-Lead Exposed Pad
• Supplier Device Package:SMD
• Size / Dimension:0.138" L x 0.124" W (3.50mm x 3.15mm)
• Height - Seated (Max):0.052" (1.33mm)
