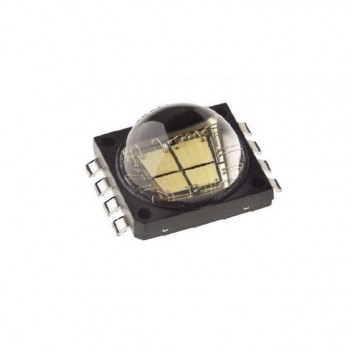

MCEEZW-U1-0000-0000F027H

Technical Details

• Series:EasyWhite®, XLamp® MC-E
• Package:Tape & Reel (TR)
• Part Status:Active
• Color:White, Warm
• CCT (K):2700K 2-Step MacAdam Ellipse
• Flux @ 85°C, Current - Test:191lm
• Flux @ 25°C, Current - Test:225lm (210lm ~ 240lm)
• Current - Test:4 x 350mA
• Voltage - Forward (Vf) (Typ):3.2V

• Lumens/Watt @ Current - Test:50 lm/W
• CRI (Color Rendering Index):90
• Current - Max:4 x 700mA
• Viewing Angle:110°
• Mounting Type:Surface Mount
• Package / Case:8-SMD, Gull Wing Exposed Pad
• Supplier Device Package:-
• Size / Dimension:0.276" L x 0.295" W (7.00mm x 7.50mm)
• Height - Seated (Max):0.184" (4.68mm)
