0765609105
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant

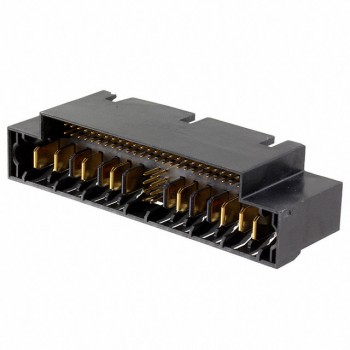

- DescriptionCONN HDR IMPACT 180POS EDGE MNT
- CategoryBackplane Connectors - Specialized
- Datasheet 0765609105 Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$25.2
- 72$22.29
Quote It
Technical Details
- Series:Impact 76560
- Package:Tray
- Part Status:Active
- Connector Usage:-
- Connector Type:Header, Male Pins
- Connector Style:Impact, Guide Right
- Number of Positions:180
- Number of Positions Loaded:All
- Pitch:0.053" (1.35mm)
- Number of Rows:18
- Number of Columns:10
- Mounting Type:Board Edge, Through Hole, Right Angle
- Termination:Press-Fit
- Contact Layout, Typical:60 Differential Pairs
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Color:Black
