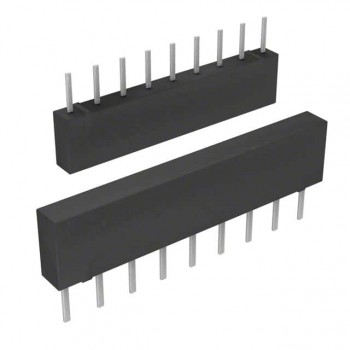

4308R-R2R-503LF
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES NETWORK 12 RES MULT OHM 8SIP
- CategoryResistor Networks, Arrays
- Datasheet 4308R-R2R-503LF Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$0.6384
- 2,000$0.6375
Quote It
Technical Details
- Series:4300R
- Package:Bulk
- Part Status:Active
- Circuit Type:R2R Ladder
- Resistance (Ohms):50k, 100k
- Tolerance:±2%
- Number of Resistors:12
- Resistor Matching Ratio:-
- Resistor-Ratio-Drift:50ppm/°C
- Number of Pins:8
- Power Per Element:125mW
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 125°C
- Applications:-
- Mounting Type:Through Hole
- Package / Case:8-SIP
- Supplier Device Package:8-SIP
- Size / Dimension:0.784" L x 0.085" W (19.91mm x 2.16mm)
- Height - Seated (Max):0.195" (4.95mm)
