LTC3115EDHD-1#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK BST ADJ 1A/2A 16DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3115EDHD-1#PBF Datasheet
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
- 1$11.31
- 25$7.51229
- 100$6.21133
- 250$5.90077
- 500$5.76767
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.2V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):2.7V
- Voltage - Output (Max):40V
- Current - Output:1A, 2A
- Frequency - Switching:100kHz ~ 2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-WFDFN Exposed Pad
- Supplier Device Package:16-DFN (5x4)
Related Products

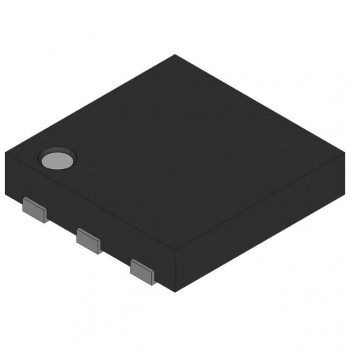

42V, 5A SYNC BUCK SILENT SWITCHE
