HUF76619D3S

Technical Details

• Series:UltraFET™
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:18A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:85mOhm @ 18A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:29 nC @ 10 V
• Vgs (Max):±16V
• Input Capacitance (Ciss) (Max) @ Vds:767 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):75W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

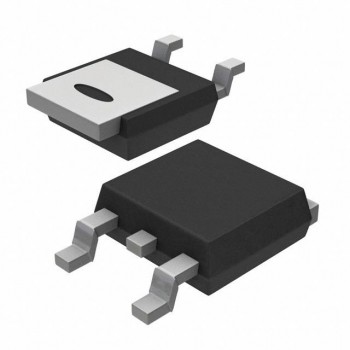

• Supplier Device Package:TO-252AA
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
