In Stock: 6,151

Can ship immediately

Pricing:
  • 1$0.93

Quote It

Technical Details

  • Series:U-MOSIX-H
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):40 V
  • Current - Continuous Drain (Id) @ 25°C:82A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:3.7mOhm @ 41A, 10V
  • Vgs(th) (Max) @ Id:2.4V @ 300µA



  • Gate Charge (Qg) (Max) @ Vgs:47 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:3615 pF @ 20 V
  • FET Feature:-
  • Power Dissipation (Max):830mW (Ta), 90W (Tc)
  • Operating Temperature:175°C
  • Mounting Type:Surface Mount
  • Supplier Device Package:8-SOP Advance (5x5)
  • Package / Case:8-PowerVDFN

Related Products


TK7S10N1Z,LXHQ

MOSFET N-CH 100V 7A DPAK

  • 1: $0.94000

SIS128LDN-T1-GE3

MOSFET N-CH 80V 10.2A/33.7A PPAK

  • 1: $1.03000

IPS65R950C6AKMA1

POWER BIPOLAR TRANSISTOR

IPS65R950C6AKMA1 Datasheet
  • 1: $0.40000
  • 10: $0.35504
  • 100: $0.28062

BSP125L6327HTSA1

MOSFET N-CH 600V 120MA SOT223-4

BSP125L6327HTSA1 Datasheet
  • 1: $0.40000

NTMFS4835NT3G

MOSFET N-CH 30V 13A/130A 5DFN

NTMFS4835NT3G Datasheet
  • 1: $0.40000

HUFA76609D3ST

MOSFET N-CH 100V 10A TO252AA

HUFA76609D3ST Datasheet
  • 1: $0.40000

NDD03N80Z-1G

MOSFET N-CH 800V 2.9A IPAK

NDD03N80Z-1G Datasheet
  • 1: $0.40000

NTMS4503NR2G

MOSFET N-CH 28V 9A 8SOIC

NTMS4503NR2G Datasheet
  • 1: $0.40000

STD5406NT4G

MOSFET N-CH 40V 12.2A/70A DPAK

STD5406NT4G Datasheet
  • 1: $0.40000

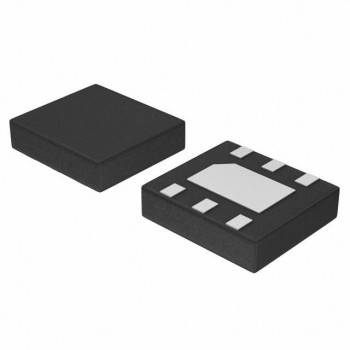

NTLGF3402PT2G
