In Stock: 4,155

Can ship immediately

Pricing:
  • 1$2.04

Quote It

Technical Details

  • Series:U-MOSIX-H
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):40 V
  • Current - Continuous Drain (Id) @ 25°C:120A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On):6V, 10V
  • Rds On (Max) @ Id, Vgs:1.9mOhm @ 60A, 6V
  • Vgs(th) (Max) @ Id:3V @ 500µA



  • Gate Charge (Qg) (Max) @ Vgs:103 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:5500 pF @ 10 V
  • FET Feature:-
  • Power Dissipation (Max):180W (Tc)
  • Operating Temperature:175°C
  • Mounting Type:Surface Mount
  • Supplier Device Package:DPAK+
  • Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63

Related Products


UPA2351T1G(2)-E4-A

POWER FIELD-EFFECT TRANSISTOR

  • 1: $0.95000

IPI60R385CP

N-CHANNEL POWER MOSFET

  • 1: $0.95000

HUFA75344S3ST

MOSFET N-CH 55V 75A D2PAK

HUFA75344S3ST Datasheet
  • 1: $0.95000

FDD6682

MOSFET N-CH 30V 75A DPAK

FDD6682 Datasheet
  • 1: $0.95000

UPA2780GR-E1-A

N-CHANNEL POWER MOSFET

  • 1: $0.95000

IPP100N06S205AKSA1

MOSFET N-CH 55V 100A TO220-3

IPP100N06S205AKSA1 Datasheet
  • 1: $0.95000
  • 500: $0.95000

IPI60R385CPXKSA1

MOSFET N-CH 650V 9A TO262-3

IPI60R385CPXKSA1 Datasheet
  • 1: $0.95000
  • 500: $0.95000

IPP100N06S205AKSA2

MOSFET N-CH 55V 100A TO220-3

IPP100N06S205AKSA2 Datasheet
  • 1: $0.95000

HUF76139P3

N-CHANNEL POWER MOSFET

  • 1: $0.95000

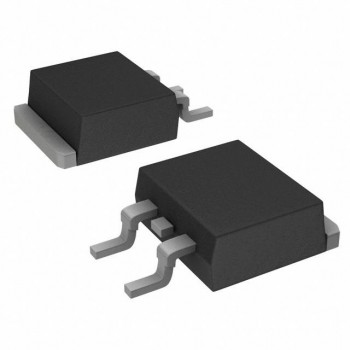

MTB30P06VT4G
