IRF8301MTRPBF
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 30V 34A DIRECTFET
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IRF8301MTRPBF Datasheet
-
ECAD Model
- Share
In Stock: 5,754
Can ship immediately
Pricing:
- 1$2.43
- 4,800$1.07093
- 9,600$1.04846
Quote It
Technical Details
- Series:HEXFET®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:34A (Ta), 192A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:1.5mOhm @ 32A, 10V
- Vgs(th) (Max) @ Id:2.35V @ 150µA
- Gate Charge (Qg) (Max) @ Vgs:77 nC @ 4.5 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:6140 pF @ 15 V
- FET Feature:-
- Power Dissipation (Max):2.8W (Ta), 89W (Tc)
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:DIRECTFET™ MT
- Package / Case:DirectFET™ Isometric MT
Related Products

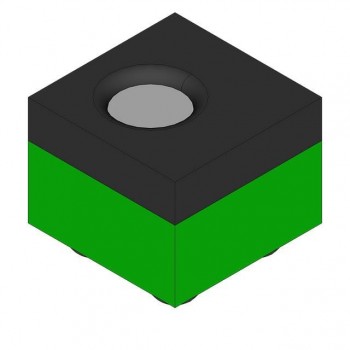

MOSFET N-CH 20V 4.7A 4WLCSP
