IRFB42N20DPBF
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCHANNEL
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IRFB42N20DPBF Datasheet
-
ECAD Model
- Share
In Stock: 5,888
Can ship immediately
Pricing:
- 1$1.33
- 50$1.06991
- 100$0.97478
- 500$0.78933
- 1,000$0.6657
Quote It
Technical Details
- Series:HEXFET®
- Package:Bulk
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):200 V
- Current - Continuous Drain (Id) @ 25°C:44A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:55mOhm @ 26A, 10V
- Vgs(th) (Max) @ Id:5.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:140 nC @ 10 V
- Vgs (Max):±30V
- Input Capacitance (Ciss) (Max) @ Vds:3.43 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):2.4W (Ta), 330W (Tc)
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:TO-220AB
- Package / Case:TO-220-3
Related Products
PFET, 120A I(D), 75V, 0.006OHM,
- 1: $1.33000
AUTOMOTIVE HEXFET N CHANNEL
- 1: $1.33000
MOSFET N-CH 40V 123A D2PAK
- 1: $1.33000
N-CHANNEL POWER MOSFET
- 1: $1.33000

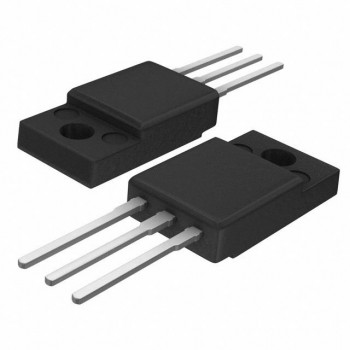

MOSFET N-CH 100V 67.5A TO220F
