SIR818DP-T1-GE3
Vishay / Siliconix
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 30V 50A PPAK SO-8
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet SIR818DP-T1-GE3 Datasheet
-
ECAD Model
- Share
In Stock: 1,312
Can ship immediately
Pricing:
- 1$1.4
- 3,000$0.65479
- 6,000$0.62405
- 15,000$0.60208
Quote It
Technical Details
- Series:TrenchFET®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:50A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:2.8mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id:2.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:95 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:3660 pF @ 15 V
- FET Feature:-
- Power Dissipation (Max):5.2W (Ta), 69W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

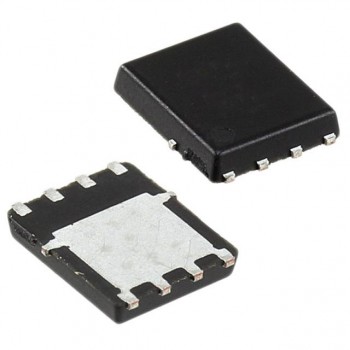

- Supplier Device Package:PowerPAK® SO-8
- Package / Case:PowerPAK® SO-8
