FDMS7660AS
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 30V 26A/42A 8PQFN
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet FDMS7660AS Datasheet
-
ECAD Model
- Share
In Stock: 4,707
Can ship immediately
Pricing:
- 1$1.63
- 3,000$0.75984
- 6,000$0.72395
- 15,000$0.6983
Quote It
Technical Details
- Series:PowerTrench®, SyncFET™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:26A (Ta), 42A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:2.4mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id:3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs:90 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:6120 pF @ 15 V
- FET Feature:-
- Power Dissipation (Max):2.5W (Ta), 83W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:8-PQFN (5x6)
- Package / Case:8-PowerTDFN
Related Products

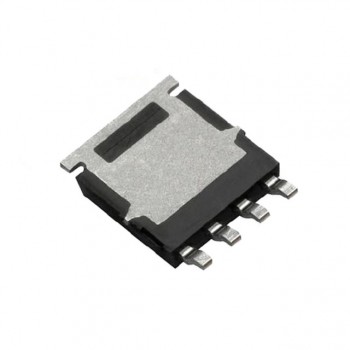

MOSFET N-CH 40V 75A PPAK SO-8
