STF9NM60N
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 600V 6.5A TO220FP
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet STF9NM60N Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$2.5
- 50$2.03597
- 100$1.84541
- 500$1.46453
- 1,000$1.23602
- 2,500$1.15984
- 5,000$1.12176
Quote It
Technical Details
- Series:MDmesh™ II
- Package:Tube
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):600 V
- Current - Continuous Drain (Id) @ 25°C:6.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:745mOhm @ 3.25A, 10V
- Vgs(th) (Max) @ Id:4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:17.4 nC @ 10 V
- Vgs (Max):±25V
- Input Capacitance (Ciss) (Max) @ Vds:452 pF @ 50 V
- FET Feature:-
- Power Dissipation (Max):25W (Tc)
- Operating Temperature:150°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:TO-220FP
- Package / Case:TO-220-3 Full Pack
Related Products

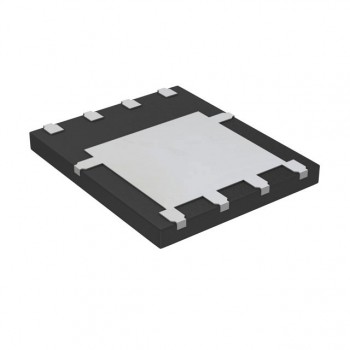

MOSFET N-CH 60V 39A/100A 8DFN
