IRF7807TRPBF

Technical Details

• Series:HEXFET®
• Package:Bulk
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:8.3A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V
• Rds On (Max) @ Id, Vgs:25mOhm @ 7A, 4.5V
• Vgs(th) (Max) @ Id:1V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:17 nC @ 5 V
• Vgs (Max):±12V
• Input Capacitance (Ciss) (Max) @ Vds:-
• FET Feature:-
• Power Dissipation (Max):2.5W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-SO

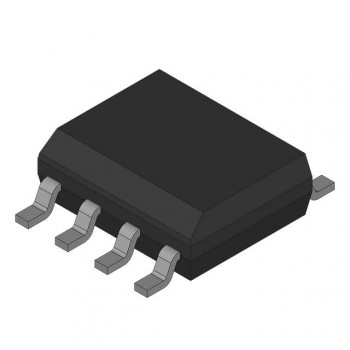

• Package / Case:8-SOIC (0.154", 3.90mm Width)
