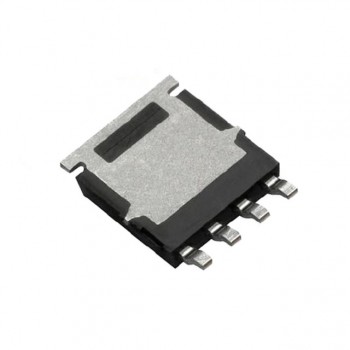

SQJA81EP-T1_GE3

Vishay / Siliconix
In Stock: 103

Can ship immediately

Pricing:
  • 1$1.94

Quote It

Technical Details

  • Series:Automotive, AEC-Q101, TrenchFET®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:P-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):80 V
  • Current - Continuous Drain (Id) @ 25°C:46A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:17.3mOhm @ 10A, 10V
  • Vgs(th) (Max) @ Id:2.5V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:80 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:5900 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):68W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:PowerPAK® SO-8
  • Package / Case:PowerPAK® SO-8
