SIRA99DP-T1-GE3

Vishay / Siliconix
In Stock: 1,144

Can ship immediately

Pricing:
  • 1$2.87

Quote It

Technical Details

  • Series:TrenchFET® Gen IV
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:P-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):30 V
  • Current - Continuous Drain (Id) @ 25°C:47.9A (Ta), 195A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:1.7mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id:2.5V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:260 nC @ 10 V
  • Vgs (Max):+16V, -20V
  • Input Capacitance (Ciss) (Max) @ Vds:10955 pF @ 15 V
  • FET Feature:-
  • Power Dissipation (Max):6.35W (Ta), 104W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:PowerPAK® SO-8
  • Package / Case:PowerPAK® SO-8

Related Products


BUK7E5R2-100E,127

MOSFET N-CH 100V 120A I2PAK

BUK7E5R2-100E,127 Datasheet
  • 1: $2.89000
  • 50: $2.33398
  • 100: $2.10061

NTMFSC0D9N04CL

MOSFET N-CH 40V 8PQFN

  • 1: $2.91000

STB22N60M6

MOSFET N-CH 600V 15A D2PAK

  • 1: $2.91000

FCPF165N65S3R0L

MOSFET N-CH 650V 19A TO220F-3

FCPF165N65S3R0L Datasheet
  • 1: $2.92000
  • 10: $2.64714
  • 100: $2.14157

SQM120N02-1M3L_GE3

MOSFET N-CH 20V 120A TO263

SQM120N02-1M3L_GE3 Datasheet
  • 1: $2.92000
  • 800: $1.62543
  • 1600: $1.49169

SI7852ADP-T1-E3

MOSFET N-CH 80V 30A PPAK SO-8

SI7852ADP-T1-E3 Datasheet
  • 1: $2.92000
  • 3000: $1.62419
  • 6000: $1.56703

STB10N95K5

MOSFET N-CH 950V 8A D2PAK

STB10N95K5 Datasheet
  • 1: $2.92000
  • 1000: $2.66718
  • 2000: $2.54847

SQM200N04-1M7L_GE3

MOSFET N-CH 40V 200A TO263-7

SQM200N04-1M7L_GE3 Datasheet
  • 1: $2.92000
  • 800: $1.71459
  • 1600: $1.60028

STB28N60M2

MOSFET N-CH 600V 22A D2PAK

STB28N60M2 Datasheet
  • 1: $2.92000
  • 1000: $2.60205
  • 2000: $2.48624

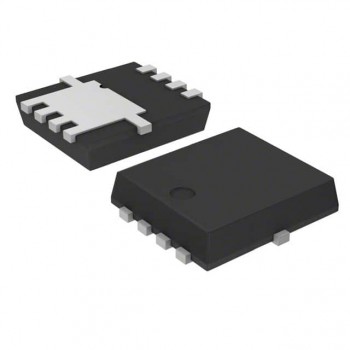

STL60N10F7
