FDB024N06
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 60V 120A D2PAK
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet FDB024N06 Datasheet
-
ECAD Model
- Share
In Stock: 221
Can ship immediately
Pricing:
- 1$4.89
- 800$3.16986
- 1,600$2.96947
- 2,400$2.82919
Quote It
Technical Details
- Series:PowerTrench®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):60 V
- Current - Continuous Drain (Id) @ 25°C:120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:2.4mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id:4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:226 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:14885 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):395W (Tc)
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Surface Mount

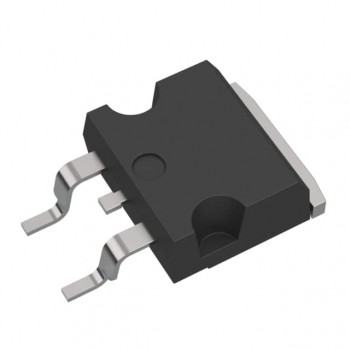

- Supplier Device Package:D²PAK
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products

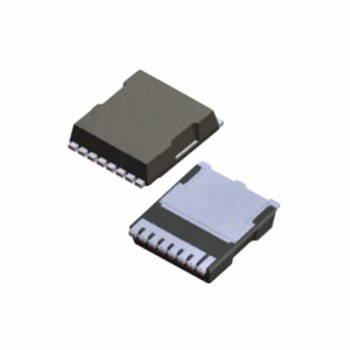

MOSFET N-CH 650V 15A LPTS
