FDMS7698
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPOWER FIELD-EFFECT TRANSISTOR, 1
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet FDMS7698 Datasheet
-
ECAD Model
- Share
In Stock: 826
Can ship immediately
Pricing:
- 1$0.17
- 3,000$0.07149
- 6,000$0.06711
- 15,000$0.06273
- 30,000$0.05966
Quote It
Technical Details
- Series:PowerTrench®
- Package:Bulk
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:13.5A (Ta), 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:10mOhm @ 13.5A, 10V
- Vgs(th) (Max) @ Id:3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:24 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:1.605 pF @ 15 V
- FET Feature:-
- Power Dissipation (Max):2.5W (Ta), 29W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:8-PQFN (5x6)
- Package / Case:8-PowerTDFN
Related Products
BSC0906 - 12V-300V N-CHANNEL POW
- 1: $0.19000
POWER FIELD-EFFECT TRANSISTOR, 1
- 1: $0.21000
OPTLMOS N-CHANNEL POWER MOSFET
- 1: $0.21000
MOSFET N-CH 40V 23A DPAK
- 1: $0.21000
MOSFET N-CH 25V 100A LFPAK56
- 1: $0.22000

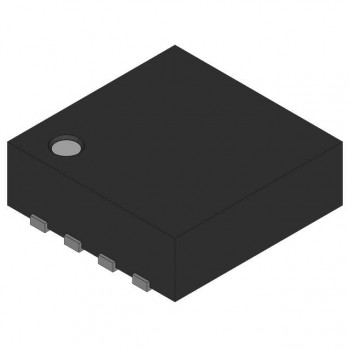

BSZ050N03 - 12V-300V N-CHANNEL P
