IPN70R1K4P7SATMA1
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CHANNEL 700V 4A SOT223
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IPN70R1K4P7SATMA1 Datasheet
-
ECAD Model
- Share
In Stock: 4,144
Can ship immediately
Pricing:
- 1$0.63
- 3,000$0.25677
- 6,000$0.24187
- 15,000$0.22697
- 30,000$0.21653
Quote It
Technical Details
- Series:CoolMOS™ P7
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):700 V
- Current - Continuous Drain (Id) @ 25°C:4A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:1.4Ohm @ 700mA, 10V
- Vgs(th) (Max) @ Id:3.5V @ 40µA
- Gate Charge (Qg) (Max) @ Vgs:4.7 nC @ 10 V
- Vgs (Max):±16V
- Input Capacitance (Ciss) (Max) @ Vds:158 pF @ 400 V
- FET Feature:-
- Power Dissipation (Max):6.2W (Tc)
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:PG-SOT223
- Package / Case:TO-261-3
Related Products
MOSFET P-CH 60V 1.1A SOT223-4
- 1: $0.61000
N-CHANNEL HERMETIC MOS HEXFET
- 1: $0.64000

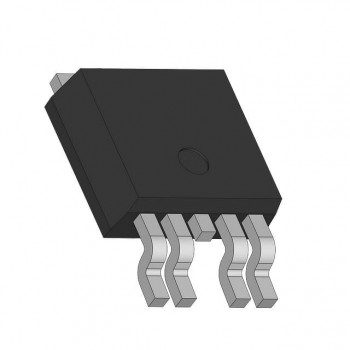

ITD50N04 - 20V-40V N-CHANNEL AUT
