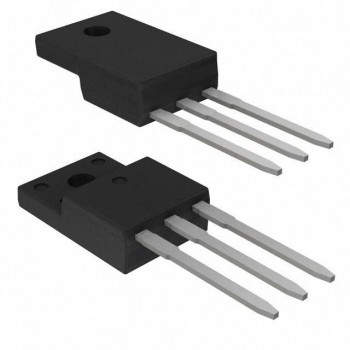

2SK3745LS-1E

Technical Details

• Series:-
• Package:Tube
• Part Status:Not For New Designs
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):1500 V
• Current - Continuous Drain (Id) @ 25°C:2A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:13Ohm @ 1A, 10V
• Vgs(th) (Max) @ Id:-

• Gate Charge (Qg) (Max) @ Vgs:37.5 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:380 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):2W (Ta), 35W (Tc)
• Operating Temperature:150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:TO-220F-3FS
• Package / Case:TO-220-3 Full Pack
