PMV50XNEAR

Technical Details

• Series:Automotive, AEC-Q101, TrenchMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:3.4A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 8V
• Rds On (Max) @ Id, Vgs:57mOhm @ 3.4A, 8V
• Vgs(th) (Max) @ Id:1.25V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:5 nC @ 4.5 V
• Vgs (Max):±12V
• Input Capacitance (Ciss) (Max) @ Vds:296 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):590mW (Ta), 5.6W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

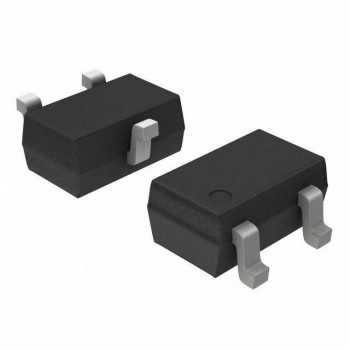

• Supplier Device Package:SOT-23
• Package / Case:TO-236-3, SC-59, SOT-23-3
