DI012N60D1
Diotec Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 600V 12A TO252-3
- CategoryTransistors - FETs, MOSFETs - Single
-
ECAD Model
- Share
In Stock: 154
Can ship immediately
Pricing:
- 1$2.352
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):600 V
- Current - Continuous Drain (Id) @ 25°C:12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:260mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id:4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:25 nC @ 10 V
- Vgs (Max):±30V
- Input Capacitance (Ciss) (Max) @ Vds:1210 pF @ 150 V
- FET Feature:-
- Power Dissipation (Max):130W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:TO-252-3, DPak
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Related Products

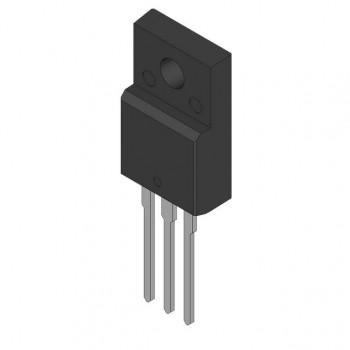

MOSFET N-CH 600V 20.7A TO220-111
- 1: $2.37000

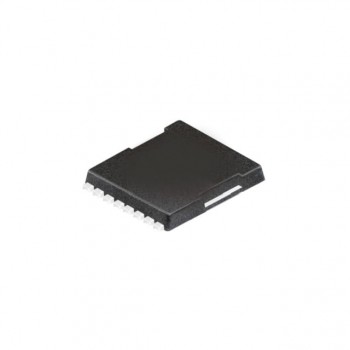

MOSFET N-CH 600V 19A 8HSOF
- 1: $4.18000

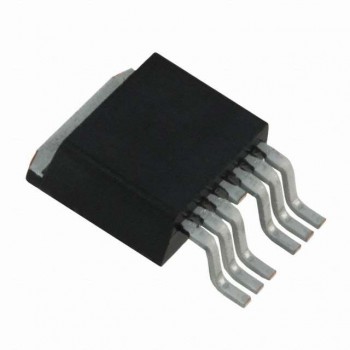

MOSFET N-CH 40V 65A/300A 8HPSOF
- 1: $4.67000
MOSFET N-CH 200V 36A 8QFN
- 1: $2.40830
MOSFET N-CH 800V 7A TO252
- 1: $4.76000

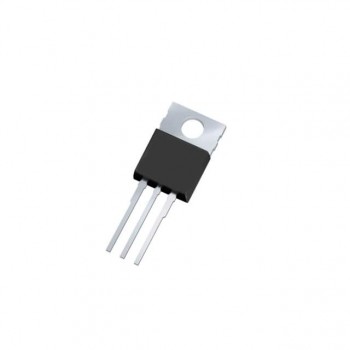

MOSFET P-CH 30V 80A TO220-3
