DMT8008LPS-13

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):80 V
• Current - Continuous Drain (Id) @ 25°C:83A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:7.8mOhm @ 14A, 10V
• Vgs(th) (Max) @ Id:2.8V @ 1mA

• Gate Charge (Qg) (Max) @ Vgs:41.2 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2345 pF @ 40 V
• FET Feature:-
• Power Dissipation (Max):1.3W (Ta), 83W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

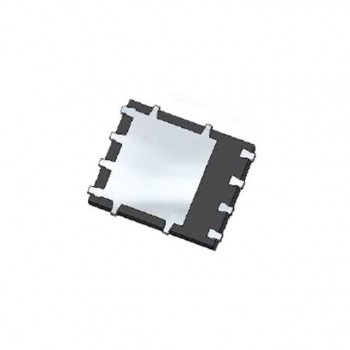

• Supplier Device Package:PowerDI5060-8
• Package / Case:8-PowerTDFN
