DMNH10H028SK3-13

Technical Details

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:55A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:28mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:3.3V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:36 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2245 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):2W (Ta)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

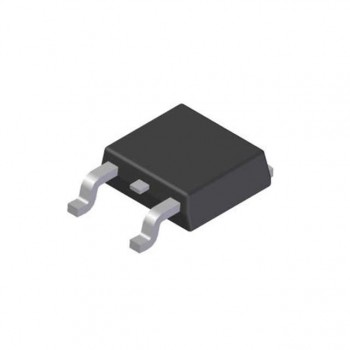

• Supplier Device Package:TO-252-3
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
