IXFK44N80Q3

Wickmann / Littelfuse
In Stock: 1,404

Can ship immediately

Pricing:
  • 1$30.2792
  • 25$30.2792

Quote It

Technical Details

  • Series:HiPerFET™
  • Package:Tube
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):800 V
  • Current - Continuous Drain (Id) @ 25°C:44A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:190mOhm @ 22A, 10V
  • Vgs(th) (Max) @ Id:6.5V @ 8mA



  • Gate Charge (Qg) (Max) @ Vgs:185 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:9840 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):1250W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-264AA (IXFK)
  • Package / Case:TO-264-3, TO-264AA

Related Products


IXFL80N50Q2

MOSFET N-CH 500V 55A ISOPLUS264

IXFL80N50Q2 Datasheet
  • 1: $30.35000
  • 25: $30.35000

IXTT1N250HV-TRL

MOSFET N-CH 2500V 1.5A TO268HV

  • 1: $30.35285

APT12057B2FLLG

MOSFET N-CH 1200V 22A T-MAX

  • 1: $30.43000

MKE38P600LB-TRR

MOSFET N-CH 600V 50A SMPD

MKE38P600LB-TRR Datasheet
  • 1: $30.59025
  • 200: $30.59025

APT50M85JVR

MOSFET N-CH 500V 50A ISOTOP

  • 1: $30.61000

APT6010JLL

MOSFET N-CH 600V 47A ISOTOP

  • 1: $31.06000

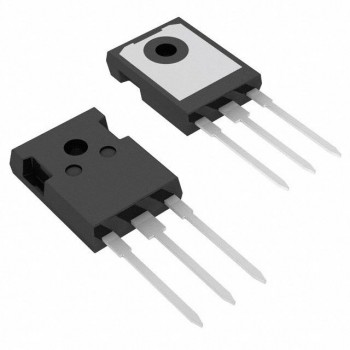

IXTH1N250

MOSFET N-CH 2500V 1.5A TO-247AD

  • 1: $31.06067

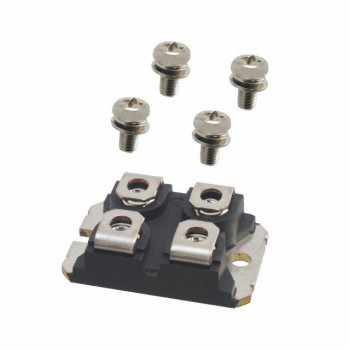

IXFN240N15T2
