IRL5602S

Technical Details

• Series:HEXFET®
• Package:Tube
• Part Status:Obsolete
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:24A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
• Rds On (Max) @ Id, Vgs:42mOhm @ 12A, 4.5V
• Vgs(th) (Max) @ Id:1V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:44 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:1460 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):75W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

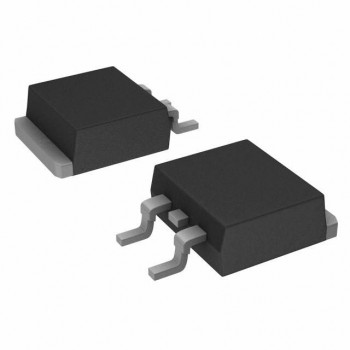

• Supplier Device Package:D2PAK
• Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
