IRF9520NS

Technical Details

• Series:HEXFET®
• Package:Tube
• Part Status:Obsolete
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:6.8A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:480mOhm @ 4A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:27 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:350 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):3.8W (Ta), 48W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:D2PAK

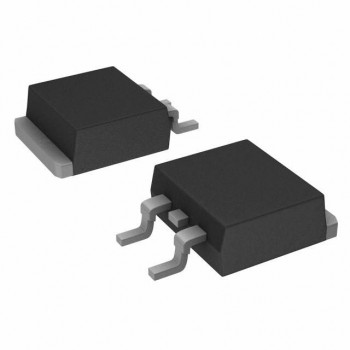

• Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
