IRFU224
Vishay / Siliconix
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 250V 3.8A TO251AA
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IRFU224 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):250 V
- Current - Continuous Drain (Id) @ 25°C:3.8A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:1.1Ohm @ 2.3A, 10V
- Vgs(th) (Max) @ Id:4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:14 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:260 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):2.5W (Ta), 42W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:TO-251AA

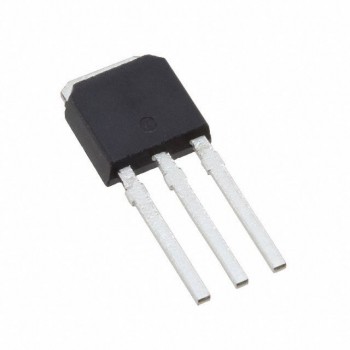

- Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
