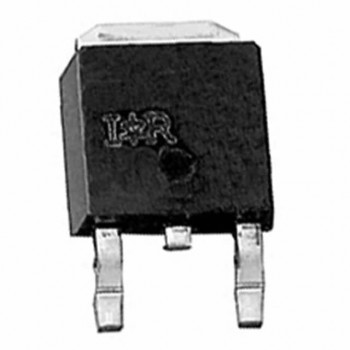

IRLR2703TRR
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 30V 23A DPAK
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IRLR2703TRR Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:HEXFET®
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:23A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4V, 10V
- Rds On (Max) @ Id, Vgs:45mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id:1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:15 nC @ 4.5 V
- Vgs (Max):±16V
- Input Capacitance (Ciss) (Max) @ Vds:450 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):45W (Tc)
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:D-Pak
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
