In Stock: 152

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:HEXFET®
  • Package:Tube
  • Part Status:Obsolete
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):20 V
  • Current - Continuous Drain (Id) @ 25°C:120A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:4mOhm @ 15A, 10V
  • Vgs(th) (Max) @ Id:2.45V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:31 nC @ 4.5 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:2830 pF @ 10 V
  • FET Feature:-
  • Power Dissipation (Max):89W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:I-PAK
  • Package / Case:TO-251-3 Short Leads, IPak, TO-251AA

Related Products


IRF634NLPBF

MOSFET N-CH 250V 8A I2PAK

IRF634NLPBF Datasheet

Call for price


IRF634NPBF

MOSFET N-CH 250V 8A TO220AB

IRF634NPBF Datasheet

Call for price


IRLU8113PBF

MOSFET N-CH 30V 94A I-PAK

IRLU8113PBF Datasheet

Call for price


IRF634NSPBF

MOSFET N-CH 250V 8A D2PAK

IRF634NSPBF Datasheet

Call for price

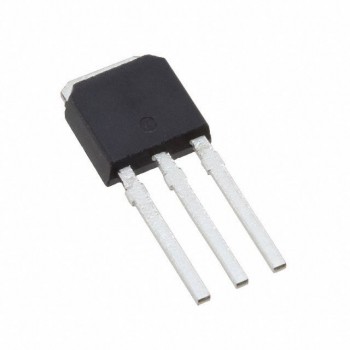

IRLU8203PBF
