IRFU9120NPBF

Technical Details

• Series:HEXFET®
• Package:Tube
• Part Status:Obsolete
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:6.6A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:480mOhm @ 3.9A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:27 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:350 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):40W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole

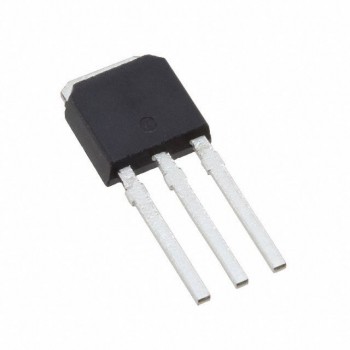

• Supplier Device Package:IPAK (TO-251)
• Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
