In Stock: 138

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:HEXFET®
  • Package:Tube
  • Part Status:Obsolete
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):30 V
  • Current - Continuous Drain (Id) @ 25°C:64A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:12mOhm @ 34A, 10V
  • Vgs(th) (Max) @ Id:1V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:33 nC @ 4.5 V
  • Vgs (Max):±16V
  • Input Capacitance (Ciss) (Max) @ Vds:1650 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):94W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-262
  • Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA

Related Products


IRL1004LPBF

MOSFET N-CH 40V 130A TO262

IRL1004LPBF Datasheet

Call for price


IRF1010NLPBF

MOSFET N-CH 55V 85A TO262

IRF1010NLPBF Datasheet

Call for price


IRL3103D2PBF

MOSFET N-CH 30V 54A TO220AB

IRL3103D2PBF Datasheet

Call for price


IRFZ48NLPBF

MOSFET N-CH 55V 64A TO262

IRFZ48NLPBF Datasheet

Call for price


IRL2203NLPBF

MOSFET N-CH 30V 116A TO262

IRL2203NLPBF Datasheet

Call for price


IRL3705NLPBF

MOSFET N-CH 55V 89A TO262

IRL3705NLPBF Datasheet

Call for price


IRFB17N60KPBF

MOSFET N-CH 600V 17A TO220AB

IRFB17N60KPBF Datasheet

Call for price


IRFBA22N50APBF

MOSFET N-CH 500V 24A SUPER-220

IRFBA22N50APBF Datasheet

Call for price


IRL3803LPBF

MOSFET N-CH 30V 140A TO262

IRL3803LPBF Datasheet

Call for price

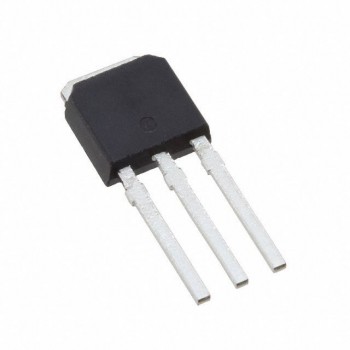

IRLU3714ZPBF
