STP22NF03L

Technical Details

• Series:STripFET™ II
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:22A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):5V, 10V
• Rds On (Max) @ Id, Vgs:50mOhm @ 11A, 10V
• Vgs(th) (Max) @ Id:1V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:9 nC @ 5 V
• Vgs (Max):±15V
• Input Capacitance (Ciss) (Max) @ Vds:330 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):45W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:TO-220AB

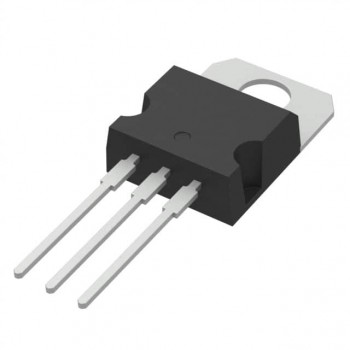

• Package / Case:TO-220-3
