FQD20N06LTM

ON Semiconductor
In Stock: 173

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:QFET®
  • Package:Tape & Reel (TR)
  • Part Status:Obsolete
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):60 V
  • Current - Continuous Drain (Id) @ 25°C:17.2A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):5V, 10V
  • Rds On (Max) @ Id, Vgs:60mOhm @ 8.6A, 10V
  • Vgs(th) (Max) @ Id:2.5V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:13 nC @ 5 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:630 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):2.5W (Ta), 38W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:D-Pak
  • Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63

Related Products


FQPF9N15

MOSFET N-CH 150V 6.9A TO220F

FQPF9N15 Datasheet

Call for price


RFP3055

MOSFET N-CH 60V 12A TO220-3

RFP3055 Datasheet

Call for price


FQI9N08LTU

MOSFET N-CH 80V 9.3A I2PAK

FQI9N08LTU Datasheet

Call for price


FQD8P10TF

MOSFET P-CH 100V 6.6A DPAK

FQD8P10TF Datasheet

Call for price


FQI9N08TU

MOSFET N-CH 80V 9.3A I2PAK

FQI9N08TU Datasheet

Call for price


IRLI510ATU

MOSFET N-CH 100V 5.6A I2PAK

IRLI510ATU Datasheet

Call for price


FQB4N25TM

MOSFET N-CH 250V 3.6A D2PAK

FQB4N25TM Datasheet

Call for price


FQB1N60TM

MOSFET N-CH 600V 1.2A D2PAK

FQB1N60TM Datasheet

Call for price


FQP2P40

MOSFET P-CH 400V 2A TO220-3

FQP2P40 Datasheet

Call for price

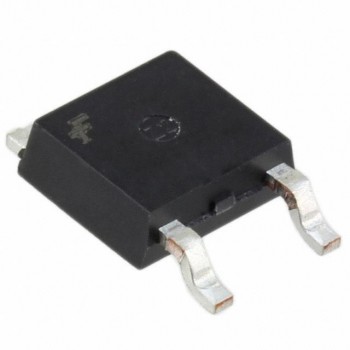

FQD10N20LTF
