IRF6610TRPBF
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 20V 15A DIRECTFET
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IRF6610TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:HEXFET®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):20 V
- Current - Continuous Drain (Id) @ 25°C:15A (Ta), 66A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:6.8mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id:2.55V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:17 nC @ 4.5 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:1520 pF @ 10 V
- FET Feature:-
- Power Dissipation (Max):2.2W (Ta), 42W (Tc)
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:DIRECTFET™ SQ

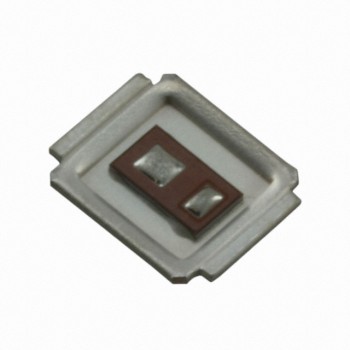

- Package / Case:DirectFET™ Isometric SQ
