IPB04N03LB G
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 30V 80A D2PAK
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IPB04N03LB G Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:OptiMOS™
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:3.5mOhm @ 55A, 10V
- Vgs(th) (Max) @ Id:2V @ 70µA
- Gate Charge (Qg) (Max) @ Vgs:40 nC @ 5 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:5203 pF @ 15 V
- FET Feature:-
- Power Dissipation (Max):107W (Tc)
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Surface Mount

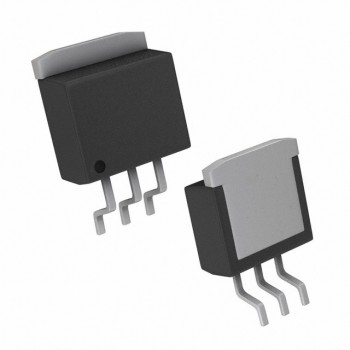

- Supplier Device Package:D²PAK (TO-263AB)
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
