IPS06N03LZ G

Technical Details

• Series:OptiMOS™
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):25 V
• Current - Continuous Drain (Id) @ 25°C:50A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:5.9mOhm @ 30A, 10V
• Vgs(th) (Max) @ Id:2V @ 40µA

• Gate Charge (Qg) (Max) @ Vgs:22 nC @ 5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2653 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):83W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:PG-TO251-3

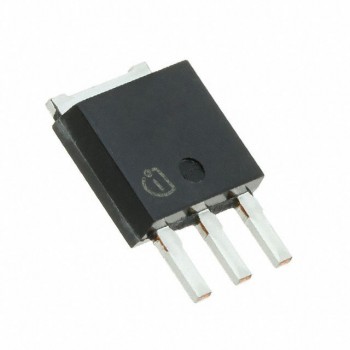

• Package / Case:TO-251-3 Stub Leads, IPak
