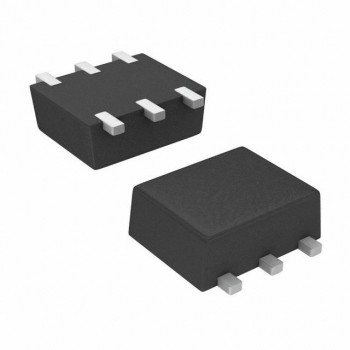

SI1022R-T1-E3
Vishay / Siliconix
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 60V 330MA SC75A
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet SI1022R-T1-E3 Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:TrenchFET®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):60 V
- Current - Continuous Drain (Id) @ 25°C:330mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:1.25Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id:2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:0.6 nC @ 4.5 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:30 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):250mW (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:SC-75A
- Package / Case:SC-75A
