NTMFS4847NAT3G

ON Semiconductor
In Stock: 111

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):30 V
  • Current - Continuous Drain (Id) @ 25°C:11.5A (Ta), 85A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 11.5V
  • Rds On (Max) @ Id, Vgs:4.1mOhm @ 30A, 10V
  • Vgs(th) (Max) @ Id:2.5V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:28 nC @ 4.5 V
  • Vgs (Max):±16V
  • Input Capacitance (Ciss) (Max) @ Vds:2614 pF @ 12 V
  • FET Feature:-
  • Power Dissipation (Max):880mW (Ta), 48.4W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:5-DFN (5x6) (8-SOFL)
  • Package / Case:8-PowerTDFN, 5 Leads

Related Products


NTS4172NT1G

MOSFET N-CH 30V 1.6A SC70-3

NTS4172NT1G Datasheet

Call for price


NTTFS4821NTWG

MOSFET N-CH 30V 7.5A/57A 8WDFN

NTTFS4821NTWG Datasheet

Call for price


NTTFS4824NTWG

MOSFET N-CH 30V 8.3A/69A 8WDFN

NTTFS4824NTWG Datasheet

Call for price


FDB3860

MOSFET N-CH 100V 6.4A/30A TO263

FDB3860 Datasheet

Call for price


DMN2104L-7

MOSFET N-CH 20V 4.3A SOT23-3

DMN2104L-7 Datasheet

Call for price


DMN3031LSS-13

MOSFET N-CH 30V 9A 8SOP

DMN3031LSS-13 Datasheet

Call for price


DMN3050S-7

MOSFET N-CH 30V 5.2A SOT23-3

DMN3050S-7 Datasheet

Call for price


DMN3112SSS-13

MOSFET N-CH 30V 6A 8SOP

DMN3112SSS-13 Datasheet

Call for price

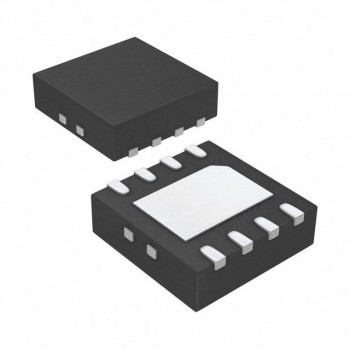

DMS2220LFW-7
